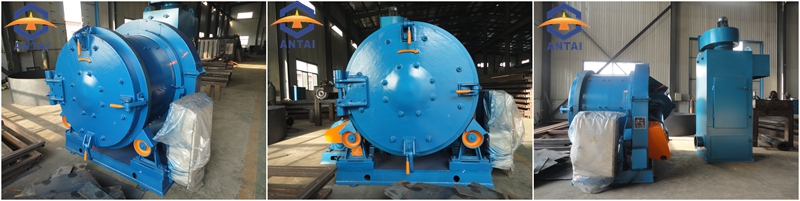

The rolling drum shot blasting machine is suitable for cleaning all kinds of castings and forgings that are not afraid of collisions and scratches. It is an ideal equipment for cleaning residual sand and oxide scale on the surface of workpieces in small heat treatment workshops. It mainly includes drum, separator, blast wheel, elevator, geared motor and other components.
The rolling drum type shot blasting machine mainly uses the high-speed rotating impeller to throw the abrasives onto the continuously overturned workpiece in the drum, so as to achieve the purpose of cleaning the workpiece, which belongs to the scope of casting machinery.
It is suitable for moulding sand cleaning, rust removal, descaling and surface strengthening of castings and forgings under 15 kg in various industries.
It is mainly used to deal with the surface corrosion of rust, sand, dirt and so on. It also improves the internal stress of the workpiece, provides the surface quality of the workpiece, improves the fatigue resistance of the workpiece, and achieves the purpose of cleaning and strengthening.
| Item | Q3110BI | Q3110BII | Q3113BI | Q31130BII |
| Rolling drum diameter (mm) | φ1000 | φ1000 | φ1300 | φ13000 |
| Loading capacity (kg) | 300 | 300 | 600 | 600 |
| Productivity (kg/h) | 600～1500 | 600～1500 | 2500～3500 | 2500～3500 |
| Power(without dust collecting system)(kw) | 9.7 | 11.9 | 14.5 | 16.3 |
| Single max weight of workpieces (kg) | 15 | 15 | 30 | 30 |
| Rolling drum speed (r/min) | 3 | 3 | 2.5 | 2.5 |
| Blasting capacity (kg/min) | 120 | 120 | 160 | 160 |
| Dust collecting total power (m3/h) | 800 | 2000 | 2000 | 2800 |
| Dust collecting efficiency (％) | 85 | 99 | 85 | 99 |
| Overall dimension (mm) | 2078×2458×1861 | 3870×2458×3370 | 2550×2341×2250 | 4362×2341×2250 |
1. Suitabe for surface treatment of small and medium parts lower than 15kgs, and the workpieces is not afraid of collision.
2. Since the equipment is equipped with dust collecting equipment, the installation position is not limited by ventilation ductworks of workshop.
3. Comapct structure, flexible use, convenient operation and maintenance.
4. Can be cleaned continuously, installed on the production line, or operated in a single machine.
