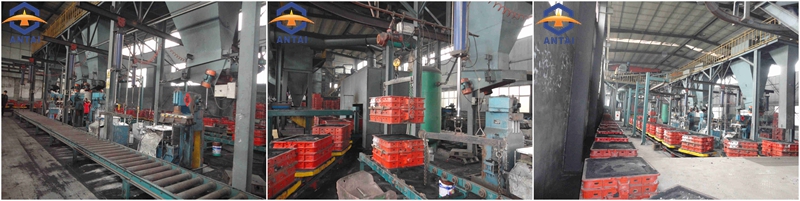

The semi-automatic moulding line is an ideal equipment for mass production of casting enterprises for mechanized transformation. It has the characteristics of less investment, quick effect, low labor intensity, high casting quality, easy to operate, good management and maintenance.

The molding line adopts a pneumatic jolt squeeze molding machine, a pneumatic multi-contacts molding machine (lots of molding machines can be used), and the casting transfer conveyor for pouring and cooling. The workers carry the sand box and the sand mould through the air hoist, as well as core setting, flask closing, pouring circular rail, sand shakeout machine, empty flask conveyor roller and sand box.

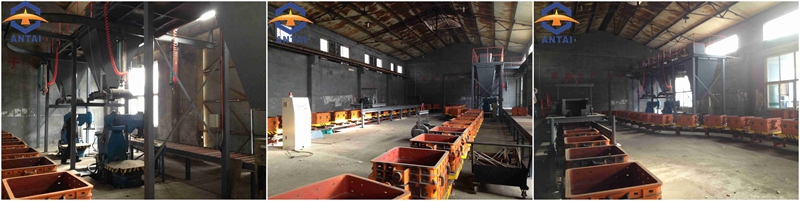

The moulding line adopts open layout, and the walking type casting conveyor transports the mold, which is compact in layout and saves workshop area. It adopts PLC to control runnig pitch, is driven by hydraulic and motor reducer, and consists of molding machine and auxiliary machines(flask punch-out machine, flask separating machine, trolley cleaning device, flask cleaning device, flask turnover machine, sand scraping machine, pouring gate milling machine, air hole milling machine, flask closing machine, transfer trolley, molding conveyor roller and cooling section.), electric control system and hydraulic system. The transition car transfers the sand mould between the molding section and each cooling section as instructed, which can realize static core setting, flask closing, pouring and different cooling time.

If the moulding line can realize uniform of molding flask and roller pattern stripping, the whole molding section area can connect auxiliary machines(flask pushing machine, flask punch-out machine, flask separating machine, flask steering machine, flask turnover machine) via rollers, more convenient and quicker operation, more standardized layout.

The moulding line adopts open layout, and the walking type casting conveyor transports the mold, which is compact in layout and saves workshop area. It adopts PLC to control runnig pitch, is driven by hydraulic and motor reducer, and consists of molding machine and auxiliary machines(flask punch-out machine, flask separating machine, trolley cleaning device, flask cleaning device, flask turnover machine, sand scraping machine, pouring gate milling machine, air hole milling machine, flask closing machine, transfer trolley, molding conveyor roller and cooling section.), electric control system and hydraulic system. The transition car transfers the sand mould between the molding section and each cooling section as instructed, which can realize static core setting, flask closing, pouring and different cooling time.

If the moulding line can realize uniform of molding flask and roller pattern stripping, the whole molding section area can connect auxiliary machines(flask pushing machine, flask punch-out machine, flask separating machine, flask steering machine, flask turnover machine) via rollers, more convenient and quicker operation, more standardized layout.
