The hydrostatic molding line, as an automatic foundry casting equipment, iis considered to be an ideal casting molding for green sand(clay sand). It's mainly divided into follwing parts: main molding machine, box closing machine, pouring machine, transfer trolley, box punch-out machine, box separating machine, etc. It's mainly consists of hydraulic system and electric control system.

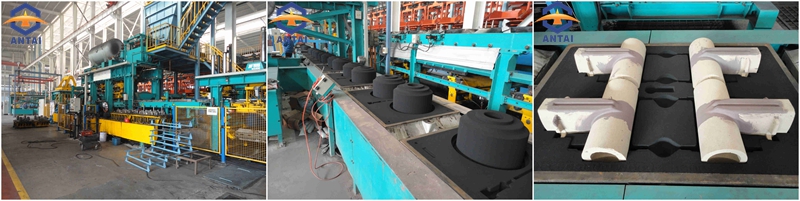

Brake Drum and Valves Hydrostatic Automatic Moulding Line

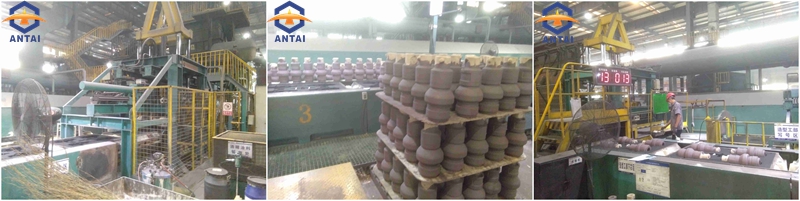

Truck Brake Drum, Wheel Hub&Brake Dics Hydrostatic Automatic Moulding Line
It's suitable for a variety of diesel engine and automotive castings and other general casting production, such as engine block, cylinder head, crankshaft, rear axle parts, such as axle housing, main reduction shell, cylindrical gear shell, brake hub, brake disc, shaft difference housing, etc.
| Item | ATHM80 | ATHM100 | ATHM120 | ATHM230 |
| Inner size of molding box(mm) | 800×600×200/200 | 1000×1000×250/250 | 1200×800×350/350 | 2300×950×350/350 |
| Molding efficiency(sec/molding) | 30 | 30 | 36 | 60 |
| Compaction ratio pressure(kgf/cm2) | 8～12 | 8～12 | 8～12 | 8～12 |
1. Compact sanding capacity, uniform compactness and high hardness for the production of complex castings;
2. The casting has high dimensional accuracy and good surface roughness;
3. High moldling efficiency;
4. High template utilization rate;
5. Good working conditions and less labor.
