Mobile
Automatic Vacuum Recovery Sand Blasting Machine features an integrated
blast pot, media vacuum recovery system and dust collecting system in a
single compact unit(consist of suction blast machine with remote
control, blast hose, blast head assembly, reclaimer&pneumatically
generated abrasive recovery system, dust collector and cart). It’s
widely used for descaling, surface texturing, and paint preparation,
mainly used to clean rust removing at oil filed, container renew, etc,
andpneumatically generated abrasive recovery system makes it to be used
without dust and disposal problem.
Blast and recovery systems can be
used to simultaneously blast and recover (closed circuit blasting) or
can be used for open air blast and then subsequent abrasive clean-up.
Simultaneous
blast and recovery eliminates dust clouds, poor visibility and costly
clean-up. The capability of independent blast and recovery makes the BRS
a productive and versatile tool suitable to many different
applications. Vacuum Blasting is ideal for big objects such as ship hulls, large tanks and concrete bridge surfaces.

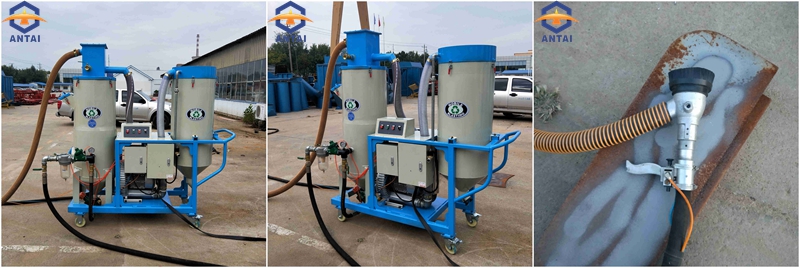

Mobile
Automatic Vacuum Recovery Sand Blasting Machine Shipped to Pakistan

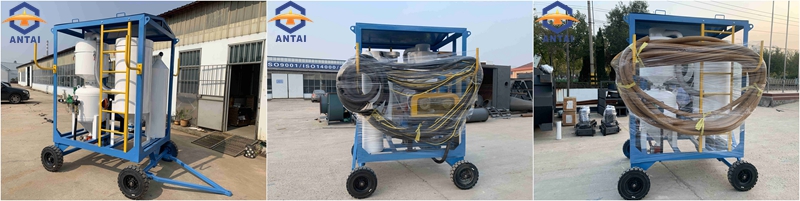

Mobile
Automatic Vacuum Recovery Sand Blasting Machine Shipped to Colombia
1.Portable
system used for lead and asbestos abatement, indoor blasting, bridge
and road maintenance, building restoration and other steel and concrete
cleaning applications.
2.Flexible system can blast and recover simultaneously or independently.
3.Automatic pulse jet prevents clogging of dust filters.
4.Quick opening hatches make cartridges and filters easy to remove and replace.
5.Moisture separator and media vibrator ensure even flow of abrasive.
| Item | Mobile Automatic Vacuum Recovery Sand Blasting Machine |
| Model | AT300 |
| Compressed air source | 0.6～0.7Mpa |
| Blasting air consumption | 6m3/h |
| Blasting air pressure | 0.4 ～ 0.6Mpa |
| Vacuum pump | 7.5kw, 25Kpa, 360 ～ 480m3 / h |
| Blasting pot volume | 150L |
| Blasting area | 6 ～ 15m2 / h |
| Continuous blasting time | 15 ～ 30min |
| Diameter and length of Blasting hose | 25mm / 15m |
| Diameter and length of suction hose | 50mm / 15m |
| Abrasive recommended | Cast steel shot (1.0mm-1.2mm) |
| Overall dimension | 1800mm * 800mm * 1800mm (L * W * H) |
| Weight | 300kg |
1.Portable system used for lead and asbestos abatement, indoor blasting, bridge and road maintenance, building restoration and other steel and concrete cleaning applications.
2.Flexible system can blast and recover simultaneously or independently.
3.Automatic pulse jet prevents clogging of dust filters.
4.Quick opening hatches make cartridges and filters easy to remove and replace.
5.Moisture separator and media vibrator ensure even flow of abrasive.
