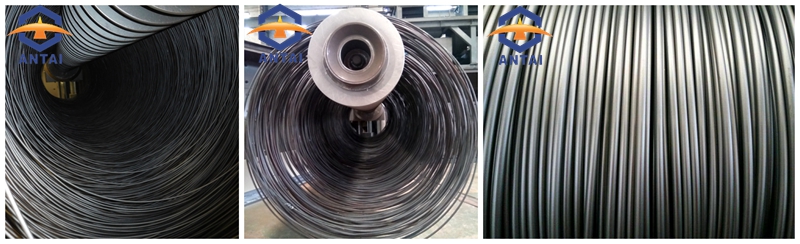

This machine is a special equipment for cleaning steel wire rod in coils. It uses shot blasting process to remove oxide scale on the wire rod surface. After shot blasting, the rust removal level of the entire surface of the workpiece reaches Sa2.0-3.0, and the inside and outside are uniform and scratch-free. Compared with the acid pickling treatment, it has the characteristics of economy, environmental protection and high efficiency.

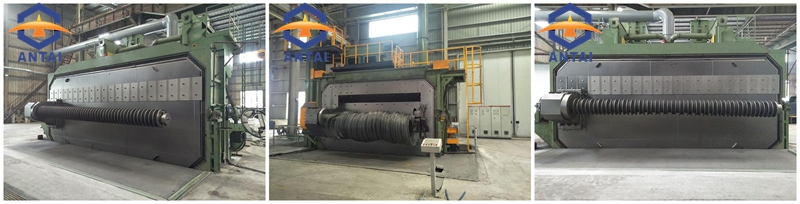

The equipment adopts the double-station working mode of "open and close rotary gate + cantilever shaft" carrying steel wire rod in coils. The cantilever shaft is made of special alloy steel. The cantilever shaft jacket has a special device that automatically disperses the wire rod in coils. It is integrated with the cantilever shaft during normal operation. During the tossing process, the device makes the coiled wire "up and down + left and right" The compound action of "swing + forward and reverse rotation" can achieve a thorough cleaning effect.
The whole machine is controlled by PLC, which is convenient and reliable to operate.
This machine is a special equipment for cleaning steel wire rod in coils. It uses shot blasting process to remove oxide scale on the wire rod surface. After shot blasting, the rust removal level of the entire surface of the workpiece reaches Sa2.0-3.0, and the inside and outside are uniform and scratch-free. Compared with the acid pickling treatment, it has the characteristics of economy, environmental protection and high efficiency.
The equipment adopts the double-station working mode of "open and close rotary gate + cantilever shaft" carrying steel wire rod in coils. The cantilever shaft is made of special alloy steel. The cantilever shaft jacket has a special device that automatically disperses the wire rod in coils. It is integrated with the cantilever shaft during normal operation. During the tossing process, the device makes the coiled wire "up and down + left and right" The compound action of "swing + forward and reverse rotation" can achieve a thorough cleaning effect.
The whole machine is controlled by PLC, which is convenient and reliable to operate.
| Item | Details | Specifications |
| Specifications of wire rod in coils | Steel types | Carbon steel,Alloy steel,Carbon tool steel,Spring steel,Bearing steel,High-speed tool steel,Cold heading steel,stainless steel |
| Diameter of wire rod in coils | φ4.0～φ42mm | |
| Inner diameter of wire rod in coils | 750mm | |
| Outer diameter of wire rod in coils | 1500mm | |
| Max capacity of wire rod in coils (kg) | φ4.0～φ42mm | 1000kgs～3000kgs |
| Carrying method & productivity | Cantilever shaft carrying | During shot blasting process , the cantilever shaft in the shot blasting chamber can work according to the PLC program, and the cantilever shaft forward and reverse time can be adjusted |
| Productivity | 5min～22min/coil | |
| Effective length of cantilever shaft carrying(mm) | 4000mm | |
| Revolving speed of cantilever shaft carrying (mm) | 10～20r/min(adjustable frequency conversion) |
This machine is a special equipment for cleaning steel wire rod in coils. It uses shot blasting process to remove oxide scale on the wire rod surface. After shot blasting, the rust removal level of the entire surface of the workpiece reaches Sa2.0-3.0, and the inside and outside are uniform and scratch-free. Compared with the acid pickling treatment, it has the characteristics of economy, environmental protection and high efficiency.
The equipment adopts the double-station working mode of "open and close rotary gate + cantilever shaft" carrying steel wire rod in coils. The cantilever shaft is made of special alloy steel. The cantilever shaft jacket has a special device that automatically disperses the wire rod in coils. It is integrated with the cantilever shaft during normal operation. During the tossing process, the device makes the coiled wire "up and down + left and right" The compound action of "swing + forward and reverse rotation" can achieve a thorough cleaning effect.
The whole machine is controlled by PLC, which is convenient and reliable to operate.
