Gas cylinder internal shot blasting machine is a special shot blasting equipment designed to meet specific process requirements. It can clean kind of kinds of CNG cylinder,LPG cylinder, LNG cylinder, gas cylinder,fuel cell hydrogen cylinder,etc. Dirt, scale, welding slag and waste paint in the cylinder cavity can be removed to make the smooth surface of the workpieces through shot blasting,, and at the same time, the internal stress of the workpiece can be reduced, and the surface of the workpiece can be strengthened, thereby improving the surface and internal quality of the workpieces.

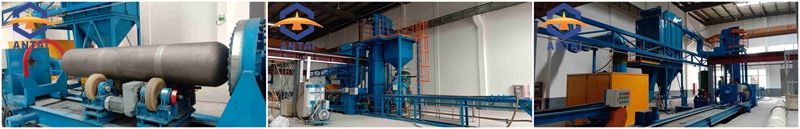

The equipment mainly consists of sealing chambers, cylinder brackets, 2 sets of high efficiency sand blasting tanks, elevator, separator, spraying gun portable mechanism, steel cylinder rotation mechanism, steel cylinder reverse mechanism, hydraulic station, platform and ladder, dust collecting system, electric control system and abrasive collecting machine.
1. Equipment usage: used for shot blasting of the internal surface of the gas cylinder after product thread processing (the product has been heat treated).
2. Product range: Internal blasting and cleaning of kinds of CNG cylinder,LPG cylinder, LNG cylinder, gas cylinder,fuel cell hydrogen cylinder,etc
| No. | Item | Technical parameters |
| 1 | Product range | ①Length: 4000mm～12500mm ②Diameter: φ350mm～φ750mm ③Wall thickness: 10mm～50mm ④Weight:≤6.5ton ⑤Material: 30CrMo, 34CrMo4, 4130X, 4142 |
| 2 | Gas cylinder rotation | 15r/min frequency control |
| 3 | Recommend abrasive | Cast steel shot( φ1.0mm～φ1.5mm) |
| 4 | Moving speed of spraying gun | 0.2～0.6m/min |
| 5 | Portable trolley of spraying gun | Power: 2×1.5kw |
| 6 | Bucket elevator | ①Lifting capacity: 30t/h ②Power: 5.5kw |
| 7 | Separator | ①Separating capacity: 30t/h ②Power: 5.5kw |
| 8 | Abrasive controller | ①Pneumatic gate valve ②Max flow: 300kg/min |
| 9 | Pulse bag dust collector | ①Air volume: 15,000m3/h ②Power: 15kw ③Velocity of filtration: ≤1.5m/min |
| 10 | 2 sets of high efficiency sand blasting tanks | Working pressure: 0.7～0.8Mpa |
| 11 | Hydraulic reverse mechanism | ①Controlled by high pressure oil cylinder ②Equipped with device to prevent side reverse during cylinder rotation ③Hydraulic station: 11kw |
| 12 | Total power | about 42kw |
| 13 | Compressed air consumption | 4×6.3m3/min |
| 14 | Cleaning efficiency | ≤ 30 min/pc |
1. Clean the oxide scale in the inner cavity of the vial and the fixtures produced during the stretching manufacturing process to obtain a clean metallic color. After treatment, the inner surface of the workpieces is cleaned to sa2.0-2.5.
2. Eliminate the residual compressive stress generated by the firing and stretching of the steel gas cylinder, and improve the fatigue resistance limit and stress corrosion cracking resistance of the steel gas cylinder;
3. Improve the quality of the inner cavity of the steel cylinder, which is conducive to improving the anti-corrosion effect of the steel cylinder and the advantages of permanent wear-resistant corrosion and impact vibration resistancee of the gas cylinder.
